115-SIG
5-110 Hz | Full range Infrasonic Subwoofer

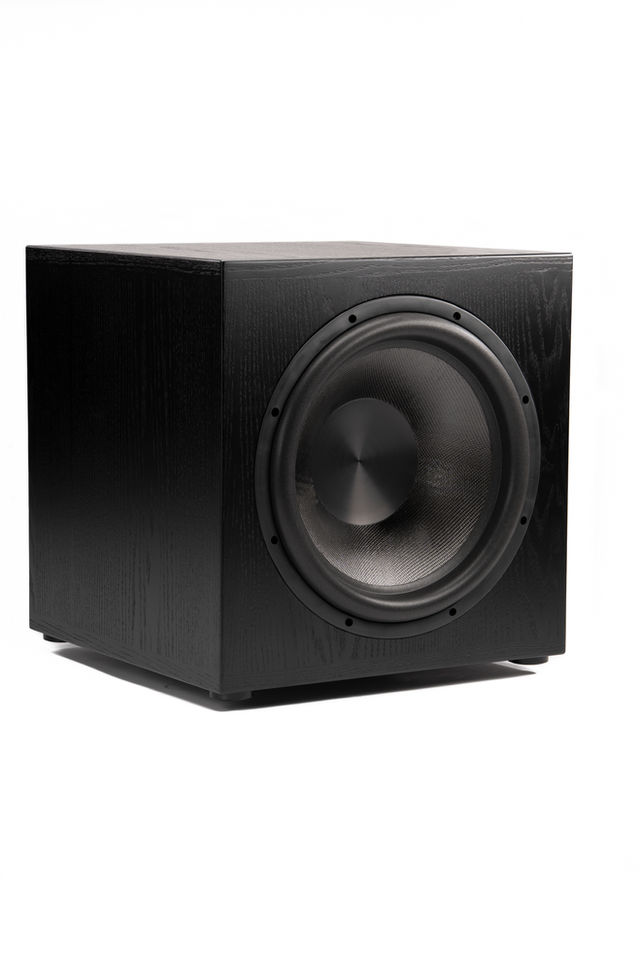

A fully active front firing 15 inch subwoofer system.
64 bits multi-mode digital processing DSP and 121 dB dynamic range is a high fidelity subwoofer dream.
Loaded with proprietary LDLC innovation, each driver features a 5 inch voice coil, solid carbon fiber cone, and is capable of getting way past Xmax travel without audibly compressing or distorting.
This is not a klippel measured DSP tweak, this is real stroke, real mechanical engineering where simulations have very little to do with the finished result.
Product Information
Dimensions (h x w x d)
492 x 480 x 480 mm
19.37 x 18.89 x 18.89 inches
<50 kg
Finish:
Full thickness real wood veneer
Hand stitched and book-matched
Available in:
Black Oak
Charcoal Walnut
Red Padauk
Clear Walnut
White Cherry
Cabinet Corner options: 3 mm and 18 mm
Enclosure specifications:
Solid void free birch ply
Well braced to LDLC standards of resonance
Driver Specifications
Voice Coil: 5” Aluminum
Motor: Underhung high energy neodymium magnet structure
Shorting: Dual aluminum rings
Linear Inductance: +/-5% through full mechanical travel - verified
Xmech: 80 mm mechanical travel
Basket: Cast aluminum frame
Dust Cap: Anodized aluminum
Cone: 100% hand-laid carbon fiber
Surround: Treated foam
Spider: 10” diameter
Venting: Under spider & Vented pole piece
Assembly: High temperature epoxies

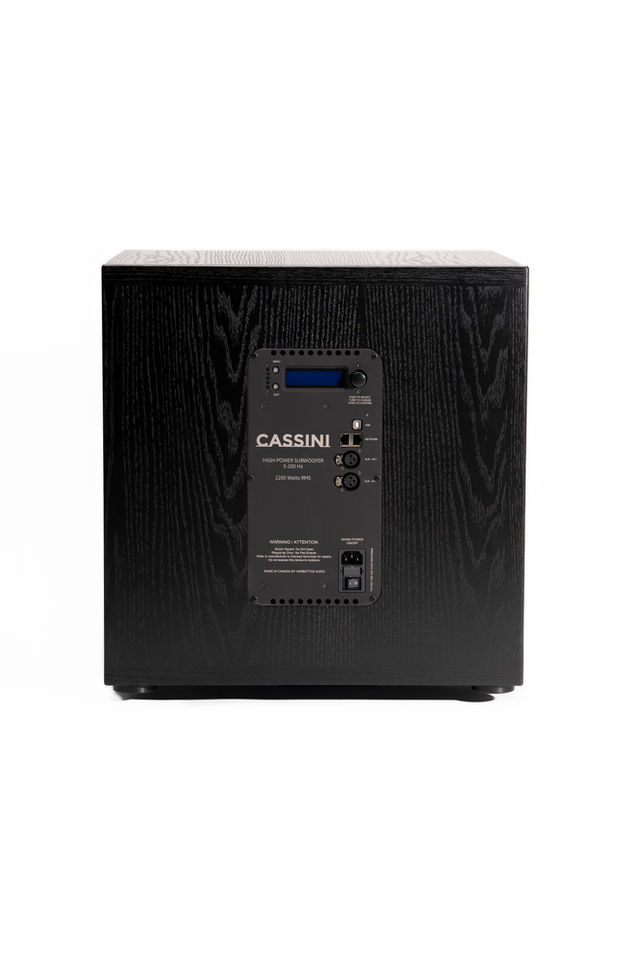

Amplifier
2400 W RMS
5200 W Peak
121 dB dynamic range
Dual XLR inputs
USB or Ethernet interface to PC
Automatic Dual voltage 115/230V
One piece aluminum chassis/heatsink
Black anodized finish
8 foot heavy gauge detachable power cord
DSP Specifications
64 bits multi-mode digital processing
Parametric EQ, 5 filter types, 10 bands/ch
High and low pass crossover, 10 slope options
Adjustable Delay
Adjustable level
Adjustable limiting
